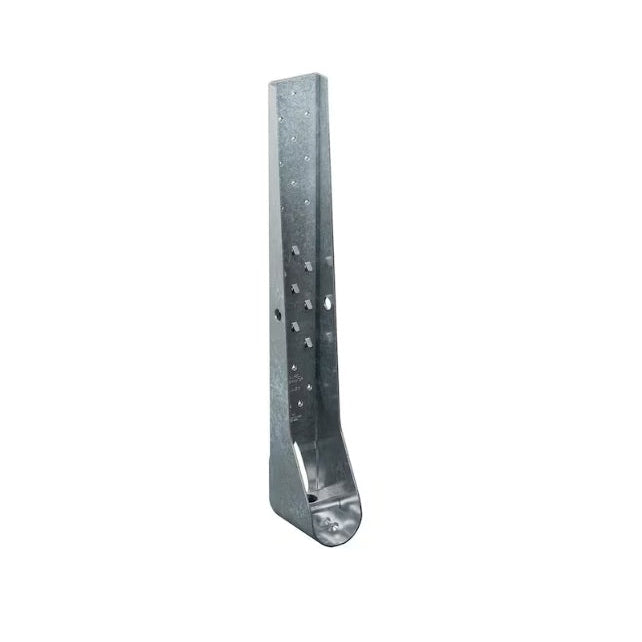

Holdown 23-1/16 in HDUE13-SDS3.5 Predeflected Galvanized w Screws 12-Gauge
El mismo día dentro de 4 horas
o ventana programada de 2 horas
Devoluciones fáciles y gratuitas
Consultar política de devoluciones
PRODUCT DESCRIPTION
ABOUT THIS PRODUCT

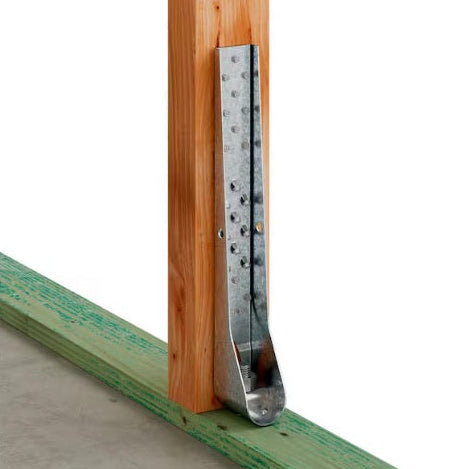

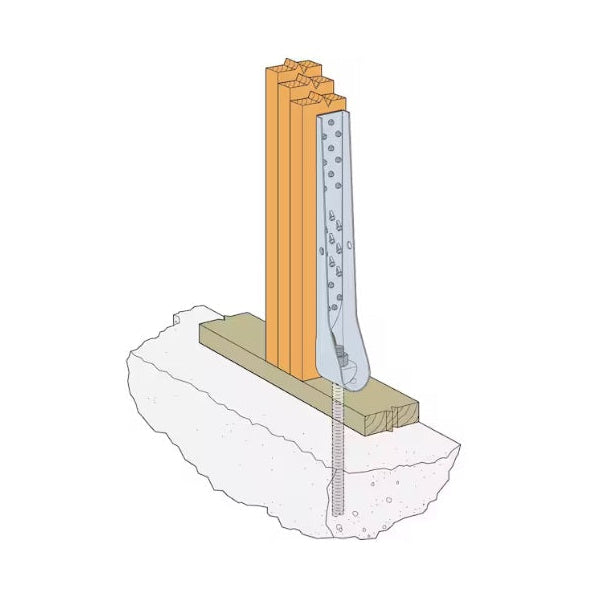

The Simpson Strong-Tie HDUE Holdown is engineered to provide a strong, dependable connection for shearwalls, braced wall panels, and other wood-framed structures that require resistance to lateral forces. Its reinforced design incorporates a predeflected seat to help minimize movement when loads are applied, while the overlapping back plate improves connection strength and helps reduce the risk of wood post splitting. Carefully designed fastening patterns further enhance load transfer and connection performance.
Installation is designed to be straightforward using Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws, providing an efficient connection solution for residential wood construction and other structural applications.
Highlights
- Predeflected seat helps minimize deflection when the connection is under load
- Angled screw installation transfers forces into tension, helping achieve higher load capacity with fewer fasteners
- Angled fastening tabs guide screws at approximately 45°, while offset holes in the secondary back plate prevent straight-line fastening
- Overlapping back plate strengthens the connection and improves shear performance while helping minimize post splitting
- Engineered screw layouts help reduce splitting near the end of the wood post and improve fastener efficiency
- Extruded seat provides additional steel cross-section for increased structural strength
- Teardrop-shaped holes promote more consistent and uniform load distribution
- Height: 23-1/16 in.
- Material: 12-gauge steel
- Finish: G90 galvanized coating for corrosion resistance
- Installation requires a 1 in. anchor bolt and 23 Simpson Strong-Drive SDS Heavy-Duty Connector screws, 1/4 in. x 3-1/2 in. (included)
PRODUCT SPECIFICATIONS
Type: Holdown
Model: HDUE13-SDS3.5
Joist size: 22-1/4x3-1/2
Gauge: 12
Coating/ Material: G90 Galvanized
Product includes: (23) 1/4 in. x 3-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws and (1) crescent washer
Weight: 7.40 lb
Width: 23.19 in
Length: 4.25 in
Thickness: 2.94 in
