What size concrete tube for a deck footing?
Many small decks use a 10 or 12 inch tube. Larger decks, taller decks and decks that carry heavy loads often need 16 inches or more. The right size depends on the load on each post, your soil and local code, so follow your plans or ask your building department. The depth matters as much as the width, and your plans give both. Once you know the diameter, pick a length that covers the hole depth plus the height above grade. You can cut a longer tube down to size on site.
How much concrete does a form tube hold?
A tube holds the same volume as a cylinder. A 12 inch tube takes about 0.79 cubic feet per foot of height, an 18 inch tube takes 1.77, a 24 inch tube takes 3.14 and a 36 inch tube takes 7.07. An 80 lb bag of concrete mix fills about 0.6 cubic feet, so a 12 inch tube takes roughly 1.3 bags for every foot of height. Multiply by the height of your pour and add a little extra for spillage. Our guide on how much concrete you need has bag counts for footings and fence posts.
What diameters and lengths do you carry?

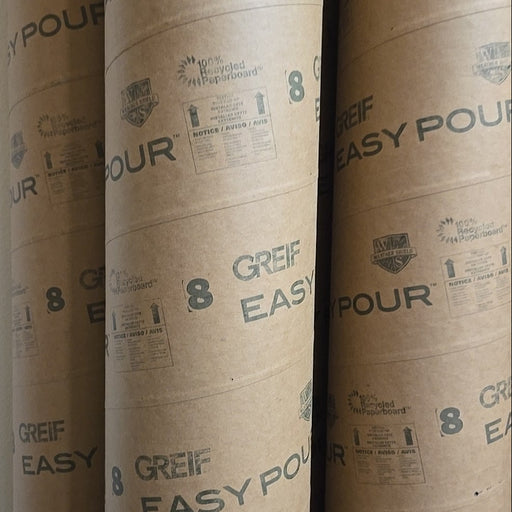

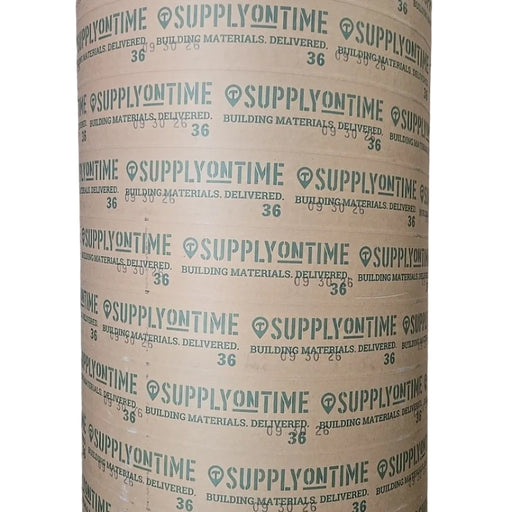

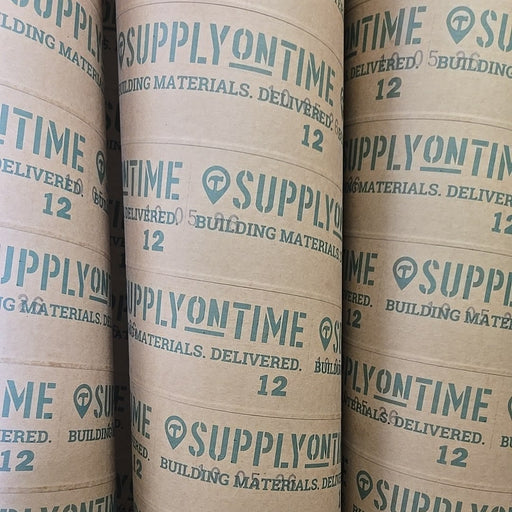

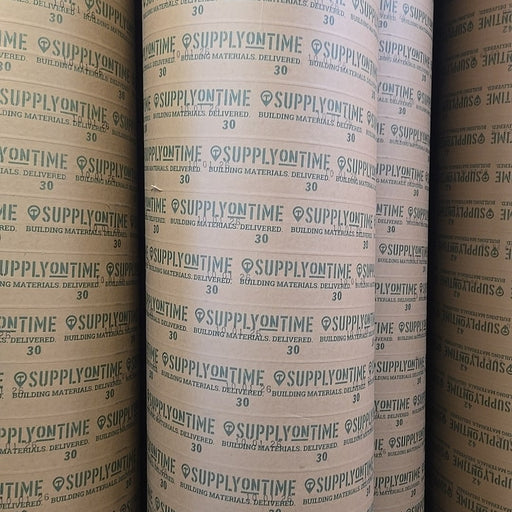

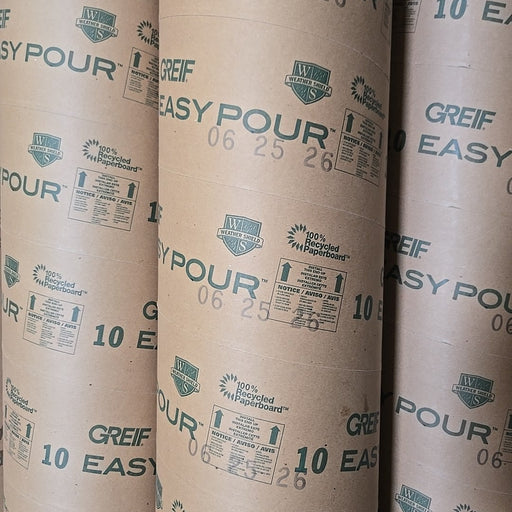

We list concrete form tubes in 6, 8, 10, 12, 14, 16, 18, 20, 24, 30, 36, 42 and 48 inch diameters, plus 54 and 60 inch heavy wall forms. Lengths run from 2 to 12 feet. Tubes from 6 to 16 inches come in 6 and 12 foot lengths. Tubes from 18 to 48 inches come in 2, 4, 6, 8, 10 and 12 foot lengths. If you need a length we do not list, order a longer tube and cut it down with a handsaw. Stock changes during the day, so open the product page to see what is available now.
Are your form tubes the same as Sonotube?
Sonotube is a brand name owned by Sonoco, and the tubes we sell are not that brand. They are cardboard concrete form tubes that do the same job, which is why many people search for them as Sonotube. You use them the same way. Set the tube, brace it, fill it with concrete and peel the cardboard away after the concrete cures. Choose your diameter and length from the plans for your job, not from a brand name.
Can I use form tubes for deck piers, porch footings and fence posts?
Yes. Form tubes are made for round concrete piers, footings and posts. Deck piers, porch and patio cover footings, pergola posts, fence posts, mailbox posts, light pole bases and round columns are all common uses. Smaller diameters suit fence and mailbox posts, middle sizes suit deck and porch footings, and large and heavy wall sizes suit columns. A tube only shapes the concrete. It does not replace the rebar or the footing design your plans call for.
Can I cut a concrete form tube to length?
Yes. Wrap a strip of paper or tape around the tube to mark a square line, then cut along it with a handsaw or a circular saw. Cutting on a flat surface helps keep the cut straight. If you are unsure of the length, order the longer tube and trim it, because you cannot add length back. Keep the tube dry while you work, since wet cardboard weakens.
How do I keep a form tube straight during the pour?
Set the tube on firm, level ground and check that it is plumb with a level on two sides. Brace it with stakes or lumber so it cannot shift when the weight of the concrete goes in. Pour in stages and let the concrete drop straight down the middle so it does not push on one side of the wall. For wide tubes and tall pours, choose a heavy wall tube. Keep the cardboard dry until you pour.
When do I remove the cardboard tube?
Wait until the concrete has set, usually 24 to 48 hours. Cool weather can mean a longer wait. Make a shallow slit down the length of the tube with a utility knife, taking care not to score the concrete, then peel the cardboard away. Below grade, the tube can stay in place and break down in the soil. Where the concrete will be seen, remove the tube and finish and cure the surface as your plans say.
What is a heavy wall form tube?

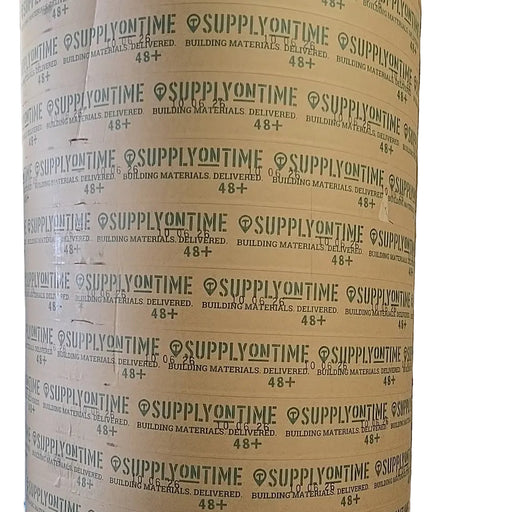

A heavy wall tube has a thicker cardboard wall than a standard tube. Wet concrete pushes outward on the wall, and that pressure grows with the width of the tube and the height of the pour. A heavy wall tube resists the pressure and holds its round shape. We list heavy wall forms in 42, 48, 54 and 60 inch diameters. Choose one for large columns and tall pours that would bulge a standard wall.
Do you deliver concrete forms, and can I pick them up?
We deliver concrete form tubes across Greater Los Angeles. Enter your ZIP at checkout to see the delivery times that are open. You can also pick up at our Baldwin Park location, 1442 Arrow Hwy Unit C, by appointment. Call 626 684 4060 to schedule a time. Pickup works well for one off jobs and for sites outside our delivery area.
