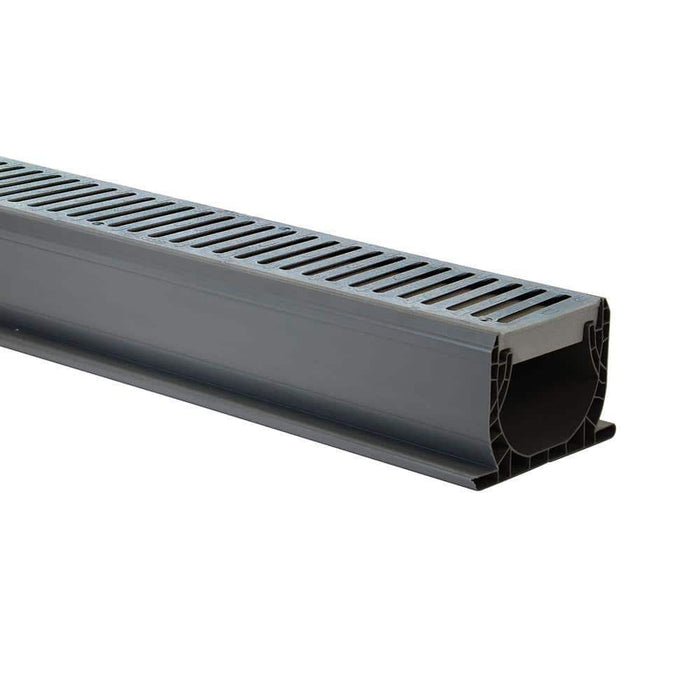

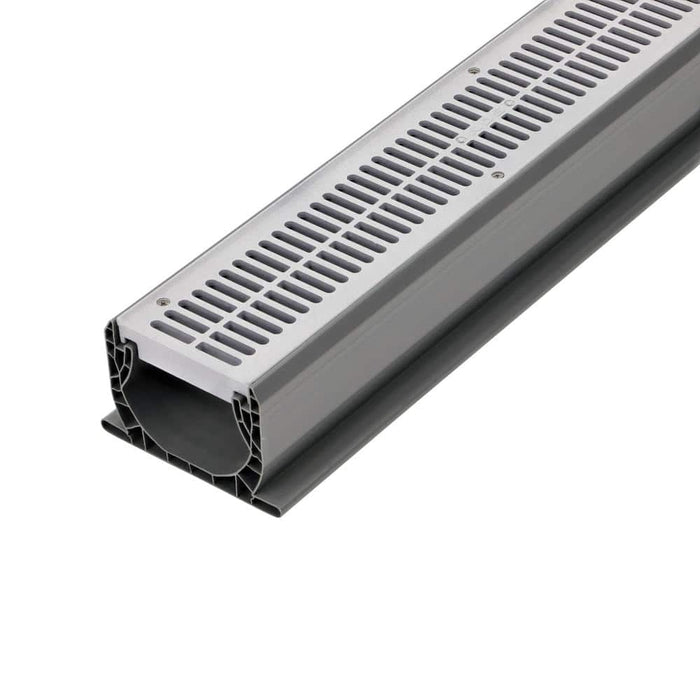

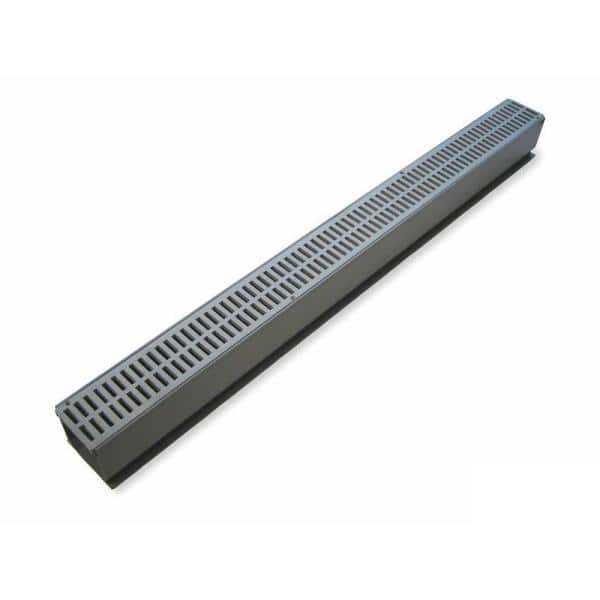

Channel Drain 4 in. x 10 ft. Speed-D with Grate Poly Grey
Privilege Club
Free & Easy Returns
Check Return Policy
PRODUCT DESCRIPTION
About This Product
Standing surface water can cause slip hazards, mildew growth, concrete staining, and structural damage. The Channel Drain 4 in. x 10 ft. Speed-D with Grate Poly Grey, America’s top-selling channel drain, solves drainage issues with its durable PVC channel and integrated polyethylene grates for quick installation. Designed to handle moderate flows from driveways, patios, pool surrounds, courtyards, and walkways, this trench drain directs water into piping systems or downstream outlets. Featuring a patented flying buttress design for exceptional load support and bottom flanges with an anchoring lip to prevent shifting, it offers a proven alternative to concrete drains. Since 1972, NDS has led the industry in stormwater management, supplying professionals with reliable products, tools, and support.
Key Features
- Prevents mildew, staining, and damage by channeling excess water away
- Ideal for moderate flows from driveways, patios, pool areas, and walkways

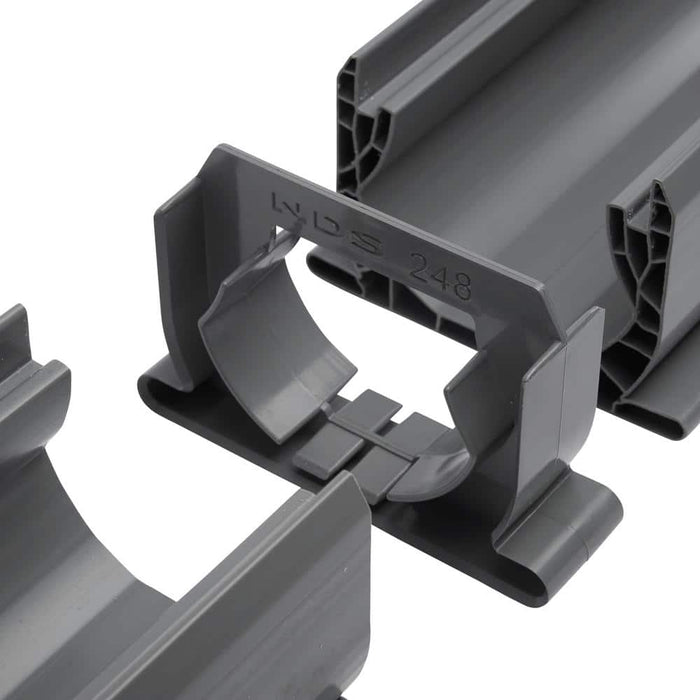

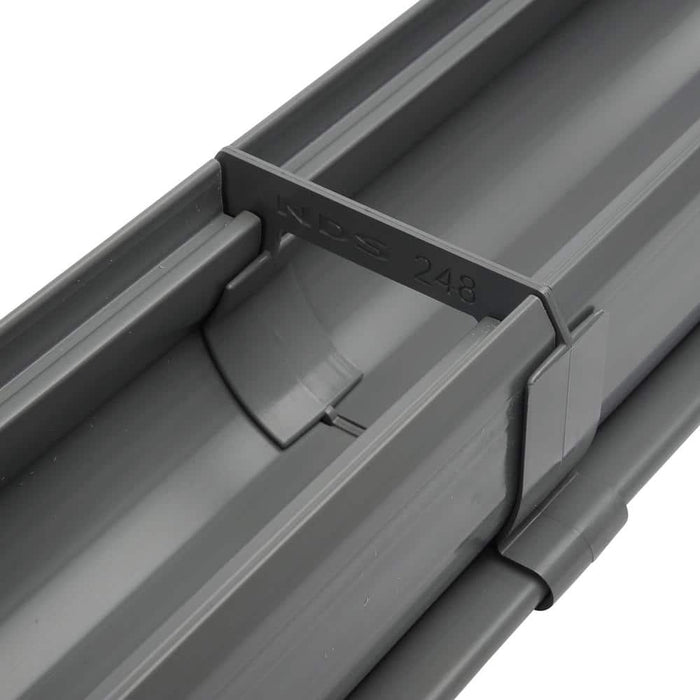

- Connect multiple drains using optional couplings
- 16.8 sq in open area per linear ft. with 51 GPM flow rate
- Rated for Class B loads (up to 175 psi)—suitable for cars and light trucks; ADA compliant

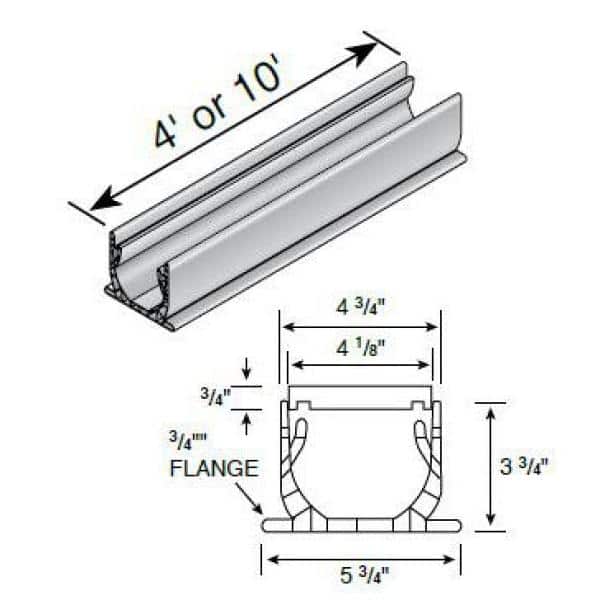

- 4 ¾ in. wide × 3 ¾ in. high × 10 ft. long; sections can be cut to fit

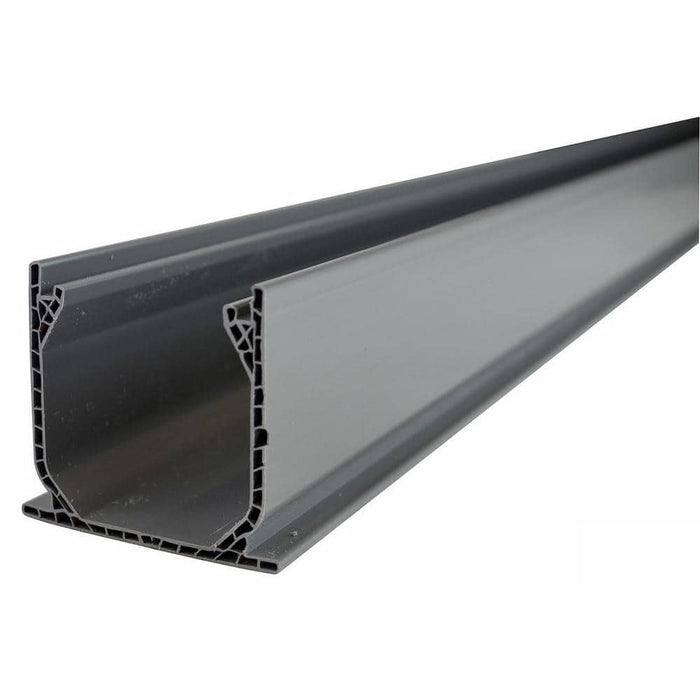

- Patented flying buttress design for multi-directional load support
- Anchoring lip on bottom flanges prevents floating
- Includes preinstalled gray polyethylene grates
- Use solvent-weld PVC glue to create watertight connections
- Removable grates allow easy debris removal and maintenance
- Constructed of UV-inhibited PVC and HDPE with recycled content
- Accessories (elbows, tees, bottoms, outlets) enable customized layouts
- Works with downstream emitters, dry wells, and French drain systems
- Helps manage stormwater to reduce runoff, erosion, and flooding
- NDS—industry leader since 1972, trusted by professionals across North America
PRODUCT SPECIFICATIONS
Color Family: Light Gray
Color/Finish: Gray/Matte
Compatible Area of Use: Driveway,Patio,Pool Deck,Walkways
Material: Poly
Maximum Working Temperature (F): 140
Minimum working temperature (F): 33
Pack Size: 1
Package Quantity: 1
Pipe or Fitting Product Type: Accessory
Product Weight (lb.): 14.7 lb
Manufacturer Warranty: Limited Lifetime
Max. Compatible Pipe Size (In.): 4"
Min. Compatible Pipe Size (In.): 4"
Product Depth (in.): 120 in
Product Length (in.): 120 in
Product Width (in.): 5.8 in
