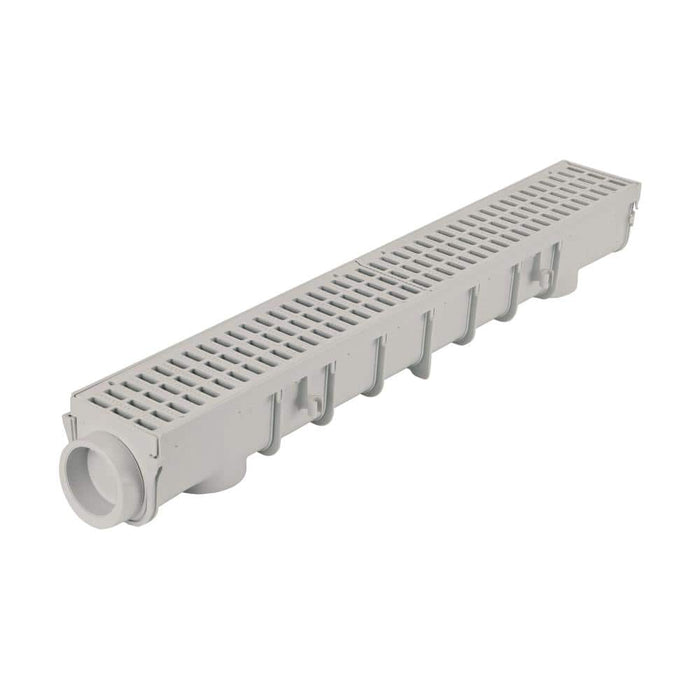

Channel Drain 5 in. x 40 in. Grate Kit with End Outlet Polypropylene Grey
Loyalty Program
Get $1 back when you spend $50
Free & Easy Returns
Check Return Policy
Today within 4 hours
or scheduled 2-hour window
PRODUCT DESCRIPTION
About This Product

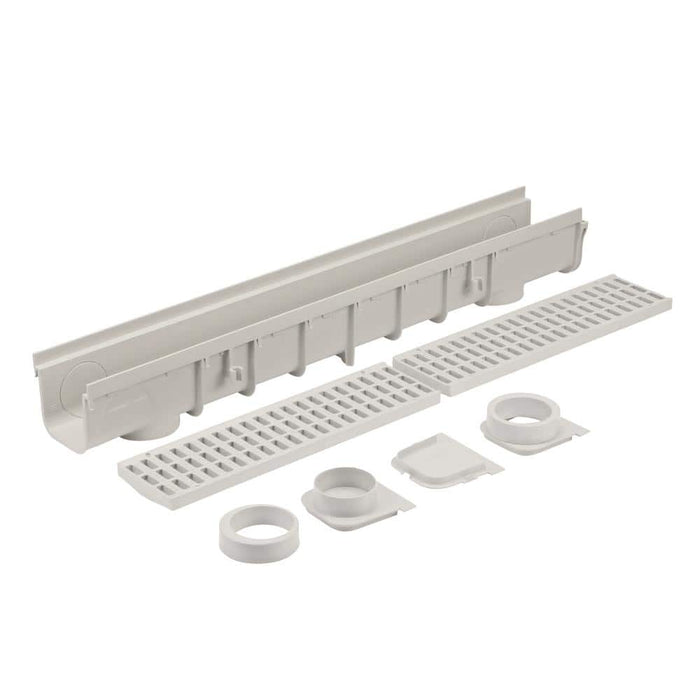

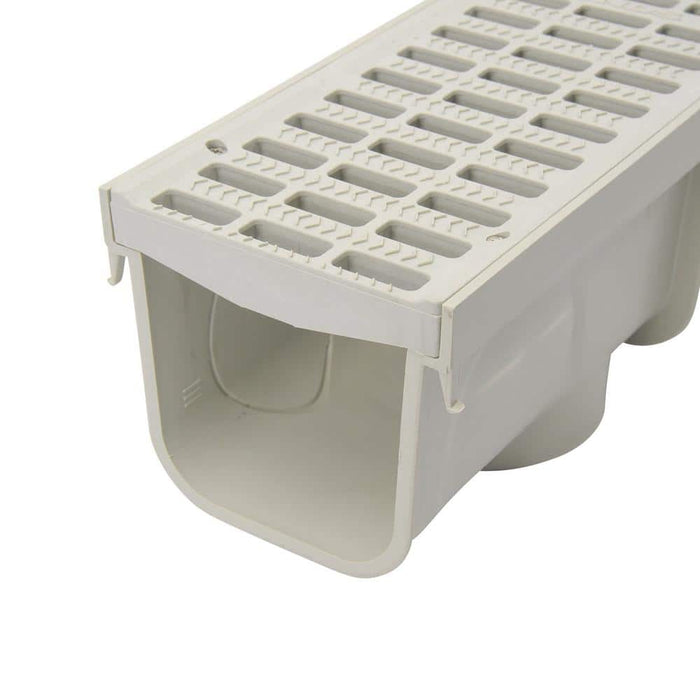

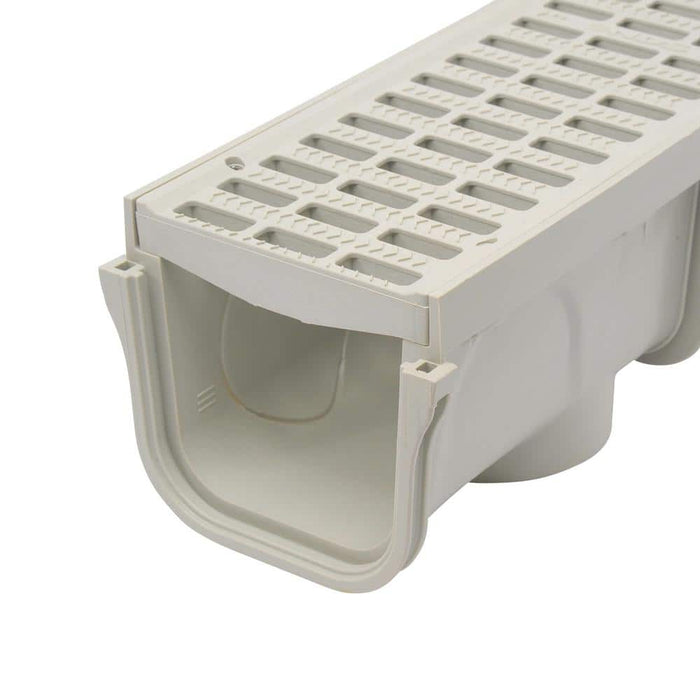

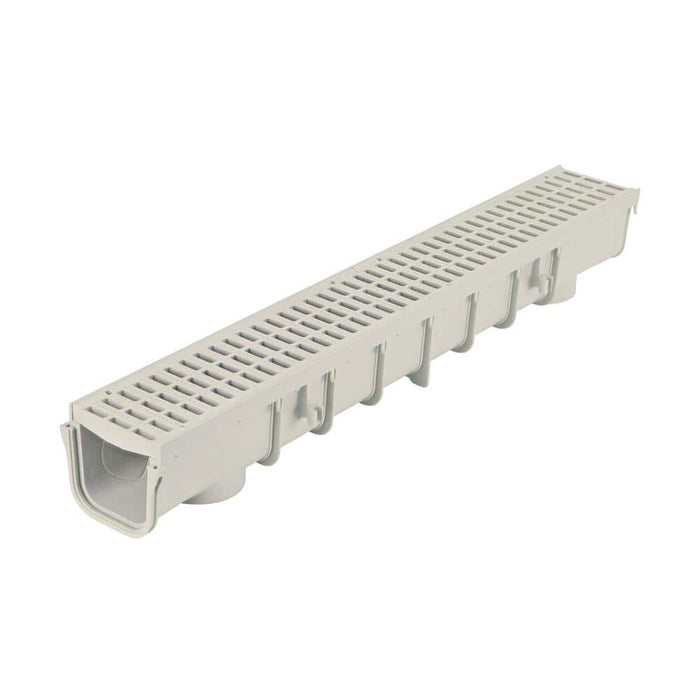

Prevent costly damage from standing water with the 5 in. Pro Series Channel Drain – a heavy-duty modular drainage system designed for hardscape surfaces. Its deep-profile polypropylene channel and interlocking joints deliver secure, leak-resistant performance without the need for couplings. Ideal for driveways, patios, walkways, sports courts, and other areas prone to moderate runoff, it directs water into standard drain piping for safe discharge. The kit includes the channel, polyethylene grates, end cap/outlet, and end cap.
Key Features

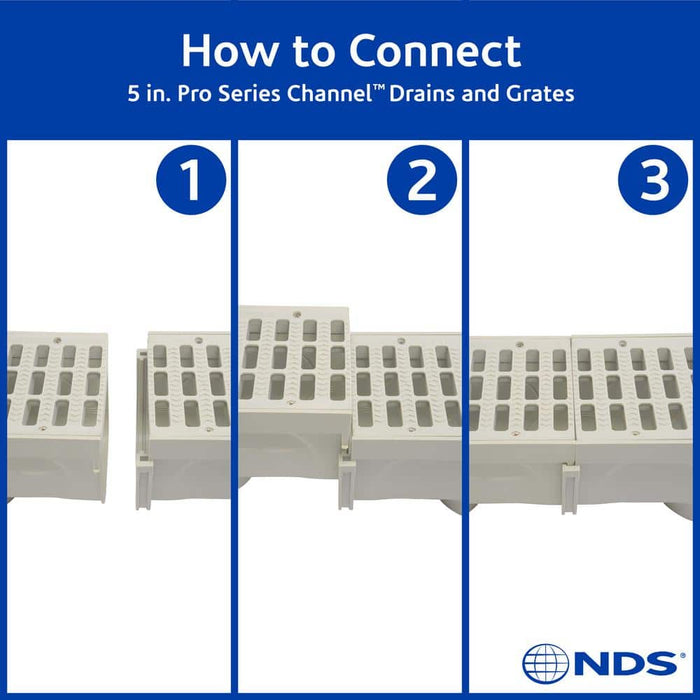

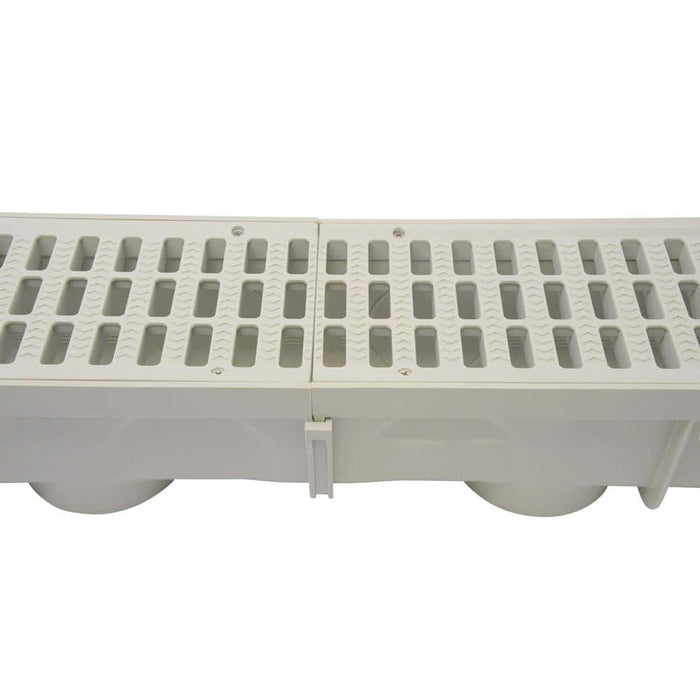

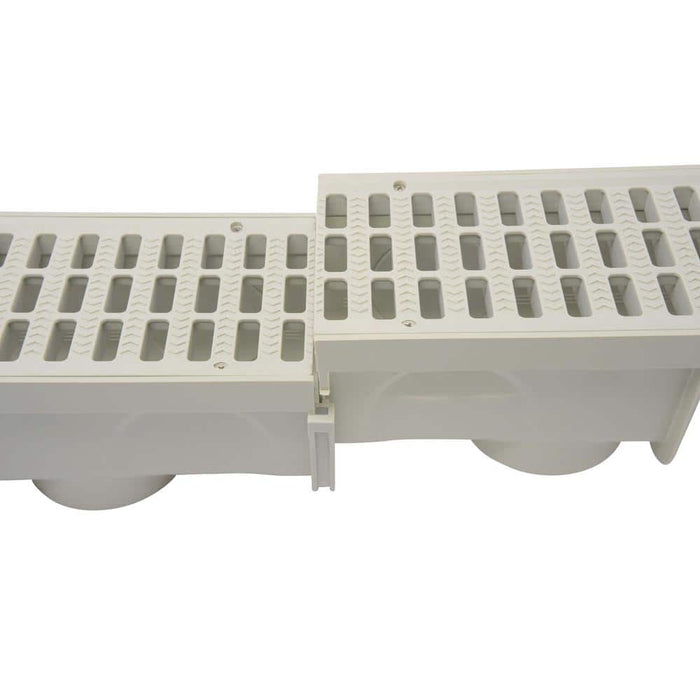

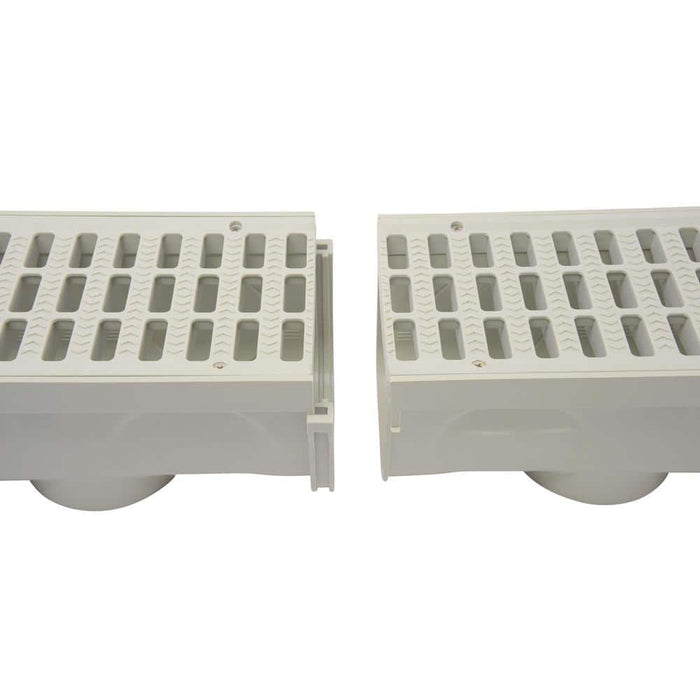

- Channels and components snap together with interlocking joints for quick assembly

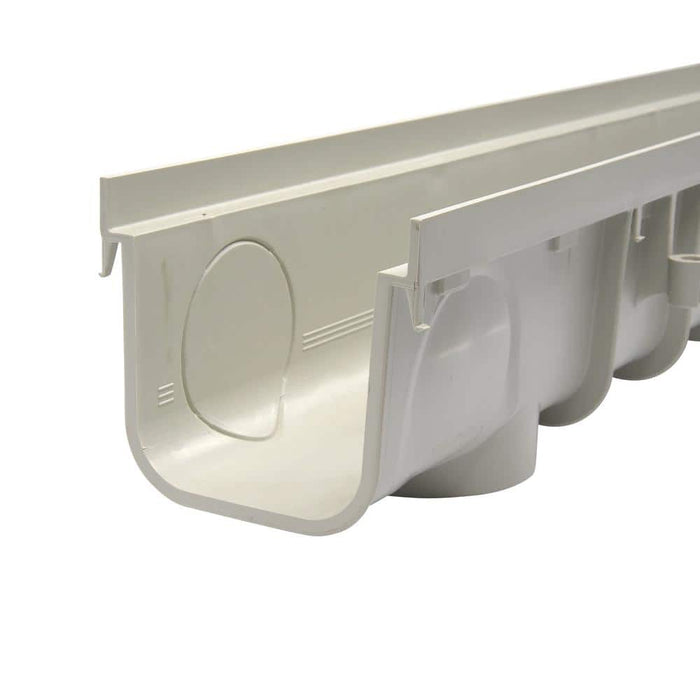

- Deep 4-3/4 in. profile drains moderate flows from hardscapes
- Cut to size in 4 in. increments using built-in saw guides

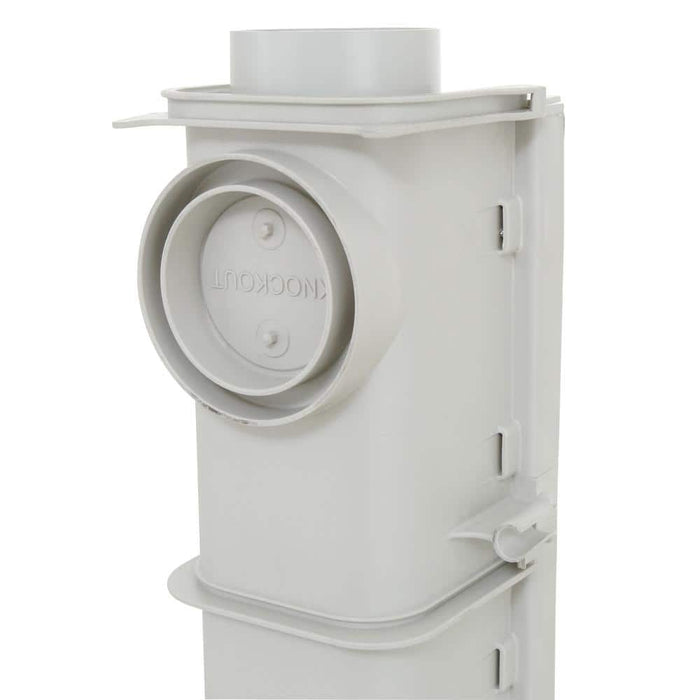

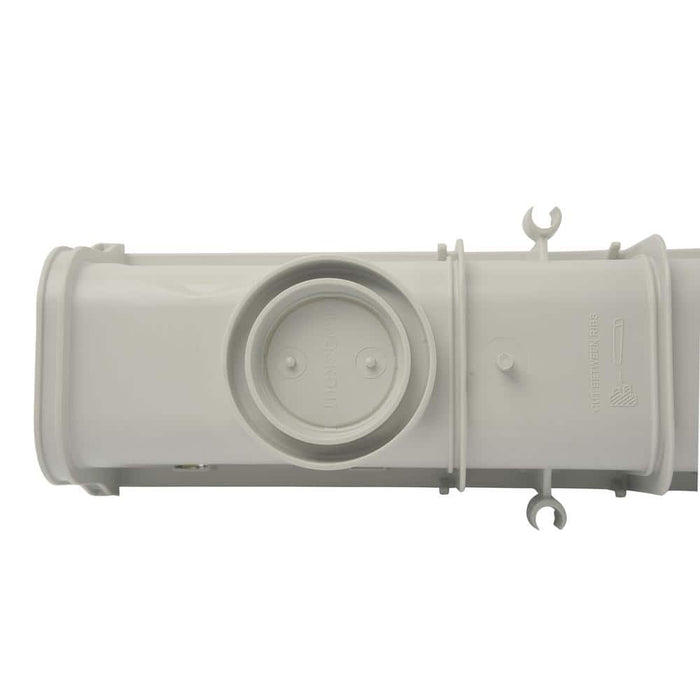

- Includes end cap/outlet plus integrated bottom outlet and side knockouts for multiple pipe connections
- 23.5 sq. in. open area per linear ft. with 72 GPM flow capacity
- Rated for Class B loads (up to 175 psi) – suitable for cars and light trucks; ADA compliant

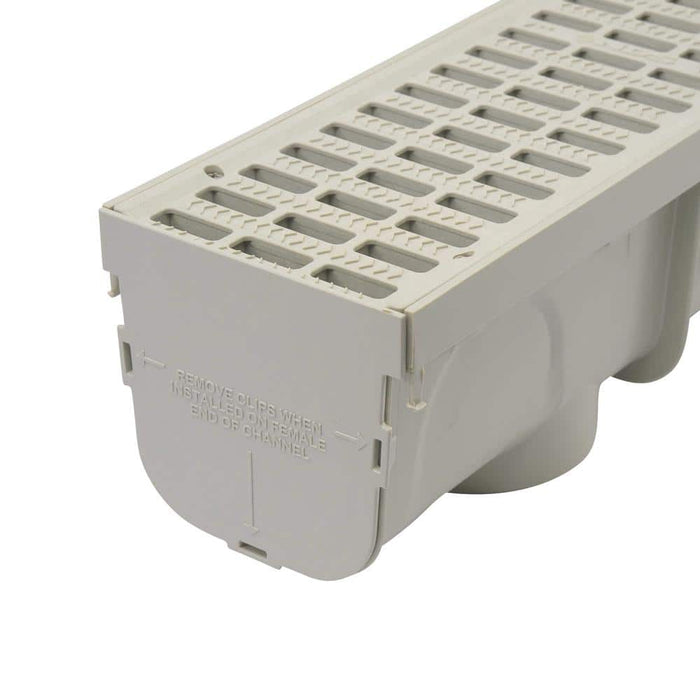

- Removable grates allow easy debris removal and maintenance

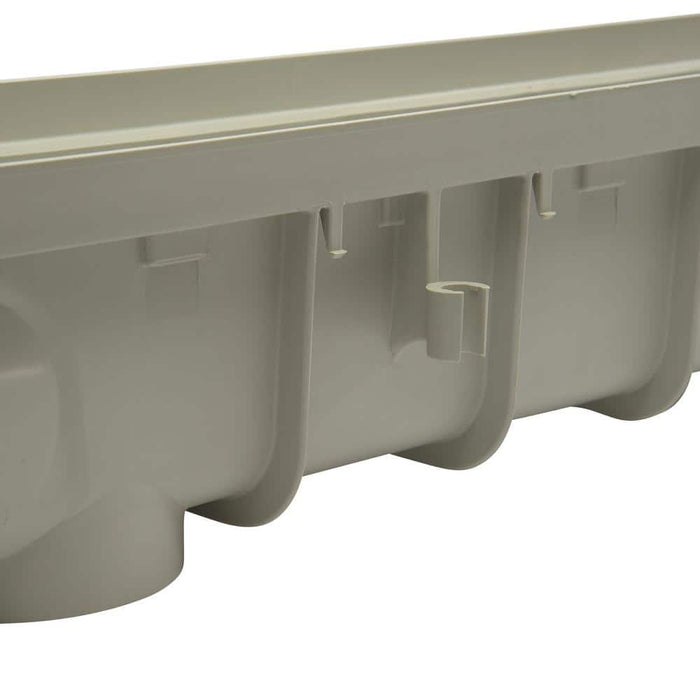

- Thick channel walls and reinforced ribs provide exceptional strength and durability
- Made of UV-inhibited polypropylene and HDPE with recycled content for long-term performance
- Compatible with standard 3 in. and 4 in. sewer and drain fittings
- Expandable system – add additional channels, couplings, and Qwik-Turn radius fittings for custom layouts
- Directs collected water to drain pipes or downstream outlets for effective stormwater management
PRODUCT SPECIFICATIONS
Color Family: Light Gray
Color/Finish: Gray/Matte
Compatible Area of Use: Driveway,Patio,Walkways,Yard
Material: Polypropylene
Maximum Working Temperature (F): 140
Minimum working temperature (F): 33
Package Quantity: 1
Pipe or Fitting Product Type: Accessory
Product Weight (lb.): 6.85 lb
Returnable: 90-Day
Manufacturer Warranty: Limited Lifetime
Max. Compatible Pipe Size (In.): 5"
Min. Compatible Pipe Size (In.): 5"
Product Depth (in.): 39.75 in
Product Length (in.): 40 in
Product Width (in.): 5.5 in
